P344 - 4-lane DPhy v1.2 Generator

Description

• Stand-alone instrument with simplified setup and operation (no PG3A required, small, quiet, cool)
• Supports MIPI DPhy signaling at up to 2.5 Gbps/4.5Gbps* per lane, 1-4 lanes
• Host control via USB 3.0, allowing for fast program download
• Provides independent channel, real-time adjustments for voltage and skew
• Supports DPhy 1.2, CSI2 1.3 and DSI 1.3.1 (and earlier) protocols *
• Supports subset of DPhy 2.1, CSI2 2.0 and DSI2 1.0 extensions *
• Provides automated video sequence construction according to user-defined frame timing
• Imports common image formats (.bmp, .jpg, etc.)
• Implements automatic image scaling, format conversion and simple test pattern generation
• Supports command insertion during looping video upon user command
• Supports multi-message response capture using 4 KB buffer
• DSC binary support included; optional DSC image compression support available
• Provides extensive scripting and macro capability (macros can now contain video-mode frames)
• Provides RPC remote-control capability using a .NET DLL
• Familiar control software interface from earlier products (DPhyGenCtl)
* Standards Support Details

Requirements for operation

• DPhy Generator Instrument (P344)
• DPhyGenCtl Control Software
• Cypress USB Driver (CyUSB3.sys, modified by Moving Pixel)
• Windows Host Computer (Win10, Win8, Win7, WinXP)

P344 (Revision A) Firmware  (please upgrade software at the same time)

P344A Firmware (version 4.0, Jun 2017)

P344 (Revision B) Firmware  (please upgrade software at the same time)

P344B Firmware (version 2.3, Oct 2018)

Software  (can run in demo mode without hardware)

DPhyGenCtl Version Summary
DPhyGenCtl (version 4.4, Oct 2020)
DPhyGenCtl (version 4.3, Aug 2020)
DPhyGenCtl (version 4.2, Nov 2019)

Support

Cypress USB Driver
CSI Video Player Example RPC Project (version 1.1)
DPhyGenCtlRPC Wrapper DLL and C++/Python demo prjects
DPhyGenCtl Example File Command Scripts

Documents

P344 Datasheet and Manual (version 1.31, Jan 2018)
DPhyGenCtl User's Manual (version 1.11, Nov 2019)
DPhyGenCtl RPC Manual (version 1.2, Oct 2016)
DPhyGenCtl RPC Command List (version 1.9, Nov 2019)

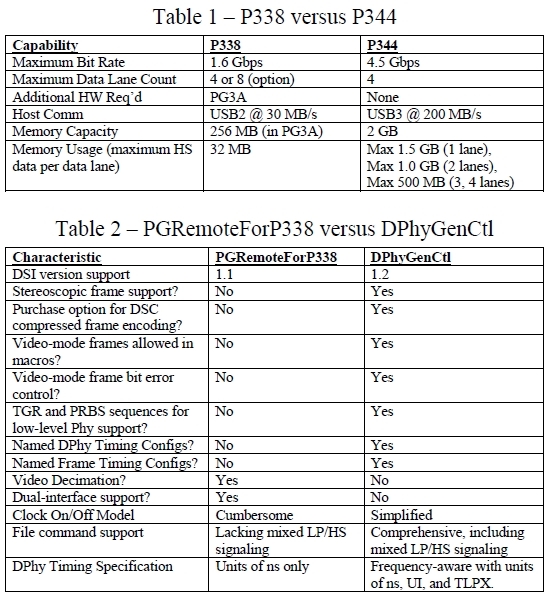

P338 versus P344 comparison
Usage notes for CTS testing
DPhyGenCtl File Command Documentation (version 1.2)
DPhyGenCtl PGFile Command Documentation

List Pricing

DPhy Generator Instrument (P344): $29,000
DPhyGenCtl Software: included
Option DSC1: $3,500    (DSC 1.2 encoding support for common image files)
Option CSIComp1: $1,500    (CSI compression)
Option 4.5G: $4,000    (upgrade from 2.5G to 4.5Gbps)

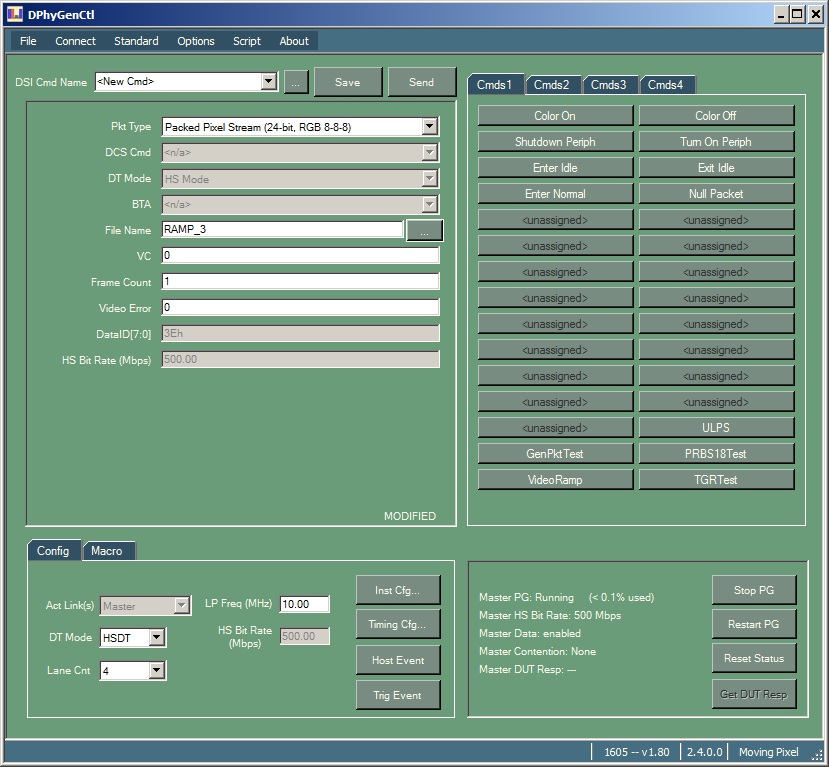

Screenshot(s)
