P339 - 4-lane CPhy Generator

Description

• Stand-alone instrument with simplified setup and operation (no PG required, small, quiet, cool)
• Supports MIPI CPhy signaling at up to 2.6 Gsps per lane, 1-4 lanes
• Host control via USB 3.0, allowing for fast program download
• Provides independent channel, real-time adjustments for voltage and skew
• Supports CPhy 1.0, CSI2 1.3 and DSI 1.2 (and earlier) protocols
• Provides automated video sequence construction according to user-defined frame timing
• Imports common image formats (.bmp, .jpg, etc.)
• Implements automatic image scaling, format conversion and simple test pattern generation
• Supports command insertion during looping video upon user command
• Supports multi-message response capture using 4 KB buffer
• Provides extensive macro capability (macros can now contain video-mode frames)
• DSC binary support included; optional DSC image compression support available
• Familiar control software interface from similar products (CPhyGenCtl)
• Provides extensive scripting and remote-control capability using a .NET DLL

Requirements for operation

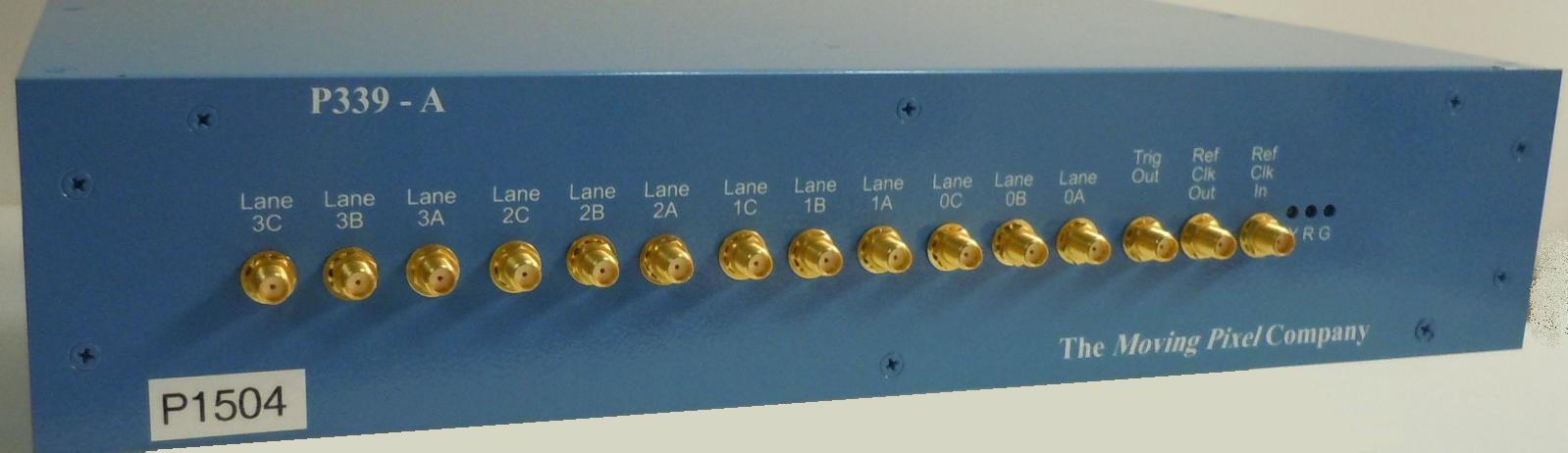

• CPhy Generator Instrument (P339)
• CPhyGenCtl Control Software
• Cypress USB Driver (CyUSB3.sys, modified by Moving Pixel)
• Windows Host Computer (Win10, Win8, Win7, WinXP)

Firmware (please upgrade CPhyGenCtl software at the same time)

P339 Firmware (version 2.2, Jun 2017)

Software (can run in demo mode without hardware)

CPhyGenCtl Version Summary
CPhyGenCtl (version 4.0, Mar 2020)
CPhyGenCtl (version 3.9, Jan 2020)
Cypress USB Driver

Documents

P339 Datasheet and Manual (version 1.41, Jan 2018)
CPhyGenCtl User's Manual (version 1.5, June 2016)
CPhyGenCtl RPC Manual (version 1.4, March 2016)

List Pricing

CPhy Generator Instrument (P339) $40,000
CPhyGenCtl Software: included
Option DSC1 Software $3,500 (DSC encoding support for common image files)

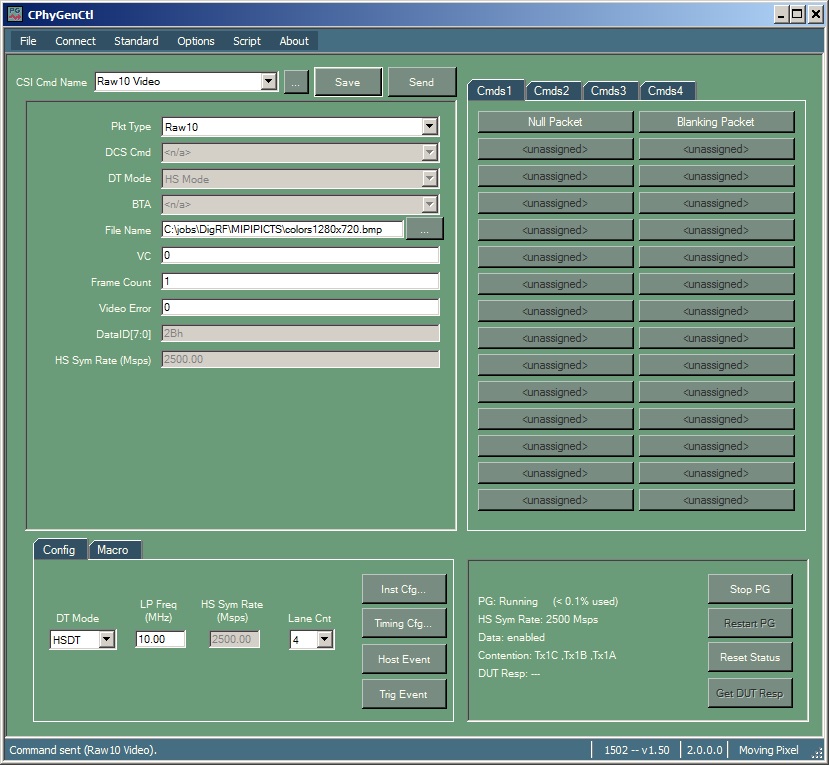

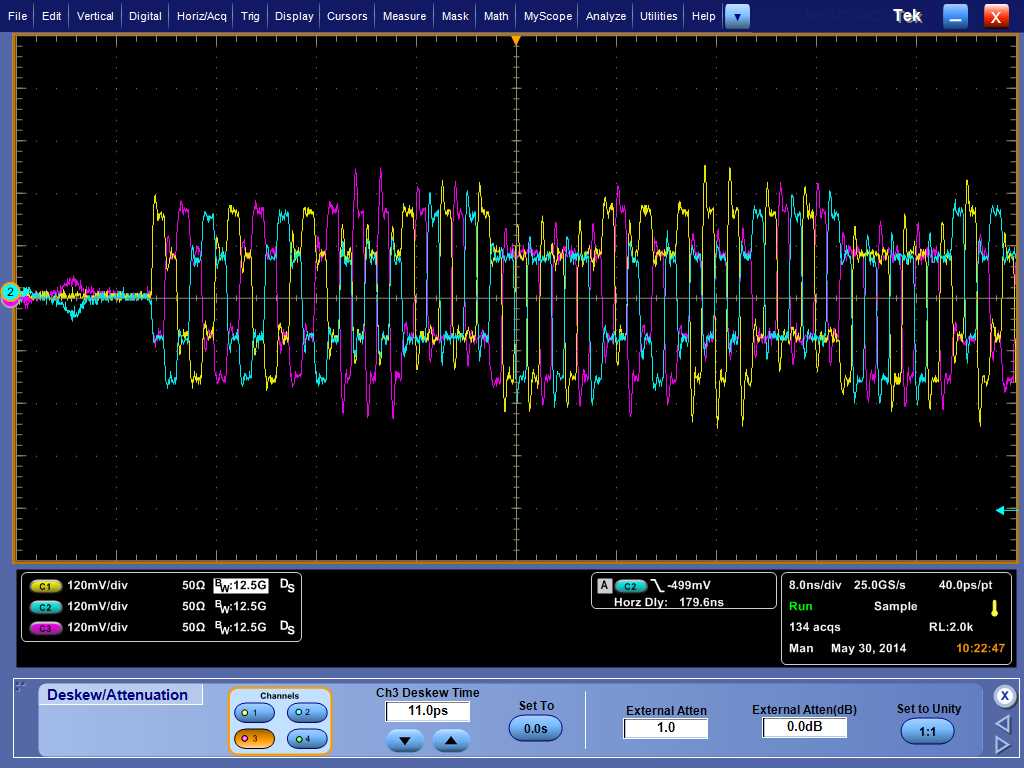

Screenshot(s)
