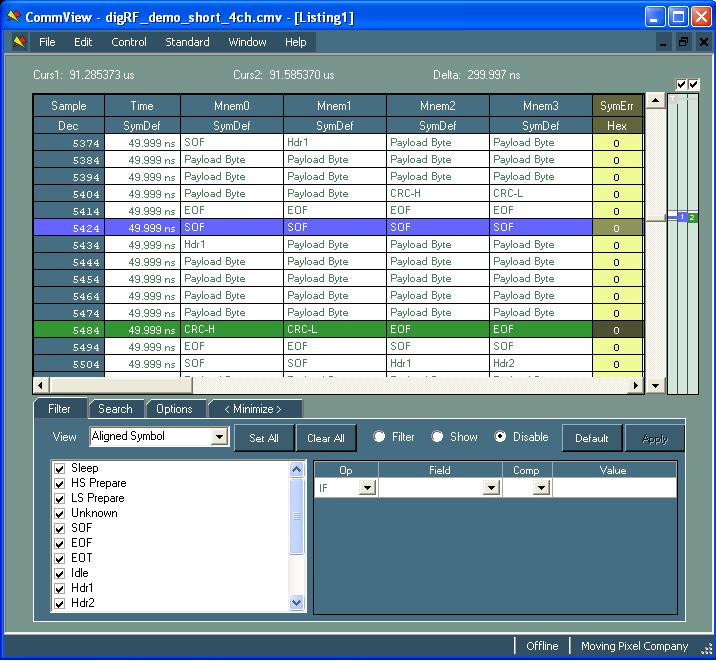

MPhyView for DigRF
- Works with a Tek 70k scope
- acquire up to 4 lanes of traffic
- bit-sync, align, 10b-8b decode, form packets and "disassemble"
- very powerful viewer with great filtering and search
- can run on the scope or laptop via network (recommended)
-
MPhyView v1.13 - Jan 2012 (2Mb)
...give it a test drive (comes with a saved system file)
-
brief PowerPoint - Apr 2010 (2Mb)
-
MPhyView Users Manual v1.06 - Apr 2010
- MSRP: $7,000.00
P335
MIPI MPhy-specific probe for PG3A
--- No other solution supports these features ! ! !
- Supports MIPI MPhy signaling at up to 6 Gbps per lane.
- Supports up to 4 lanes
- Voltages adjustable on an channel-by-channel basis in real-time.
Note to Aerospace companies: This product is produced on a lead-free assembly line using lead-free solders.
For more information, contact us directly.
