DPhy Decoder HS - 4-lane DPhy V1.2 Decoder

Description

• Stand-alone instrument with simple setup and operation (small, quiet, cool)
• Monitors MIPI DPhy traffic up to 2.5 Gbps per lane, 1-4 lanes
• Host control via USB 3.0, allowing for fast upload of acquired data
• Provides both "Sniff Mode" (high-Z) and "Receive Mode" (SMA, terminated) interfaces
• Can transmit LPDT packet or LP signalling response to read packets (receive-mode only)
• Supports acquisition of contiguous DPhy traffic using 1 GB capture memory
• Provides protocol packet triggering, LP sequence and state triggering, ECC/CRC/burst error triggering
• Provides real-time statistics: bus activity, measured bit-rate, packet counts, ECC/CRC error counts, etc.
• Acquires, decodes, and displays CSI2 1.3, DSI 1.3.1 protocol packets and DPhy 1.2 signaling states
• Provides extensive search and display filtering capabilites
• Decodes, displays, and can export captured video frames (including DSC frames)
• Familiar control software interface from earlier products (DPhyDecoderHSCtl)
• Provides extensive RPC remote-control capability using a .NET DLL

Requirements for operation

• DPhy Decoder HS Instrument
• DPhyDecoderHSCtl Control Software
• Cypress USB Driver (CyUSB3.sys, modified by Moving Pixel)
• Windows Host Computer (Win10, Win8, Win7, WinXP)

Firmware  (please upgrade software at the same time)

DPhy Decoder HS Firmware (version 2.5, Aug 2018)

Software  (can run in demo mode without hardware)

DPhyDecoderHSCtl Version Summary
DPhyDecoderHSCtl (version 3.9, Jun 2020)
DPhyDecoderHSCtl (version 3.8, Jul 2018)
DPhyDecoderHSCtl (version 3.7, Jun 2018)
Cypress USB Driver

Support Files

DPhyDecoderHSCtlRPC Wrapper DLL (for non .NET language interfacing)
DPhyDecoderHSCtlRPC Wrapper DLL, 64-bit (for non-.NET language interfacing)
Example Video Trace files (use with DPhyDecoderHSCtl)

Documents

DPhy Decoder HS Datasheet and Manual (version 1.31, January 2018)
DPhyDecoderHSCtl User's Manual (version 1.7, Aug 2018)
DPhyDecoderHSCtl RPC Manual (version 1.6, Apr 2018)

List Pricing

DPhy Decoder HS Instrument: $32,000
DPhyDecoderHSCtl Software: included

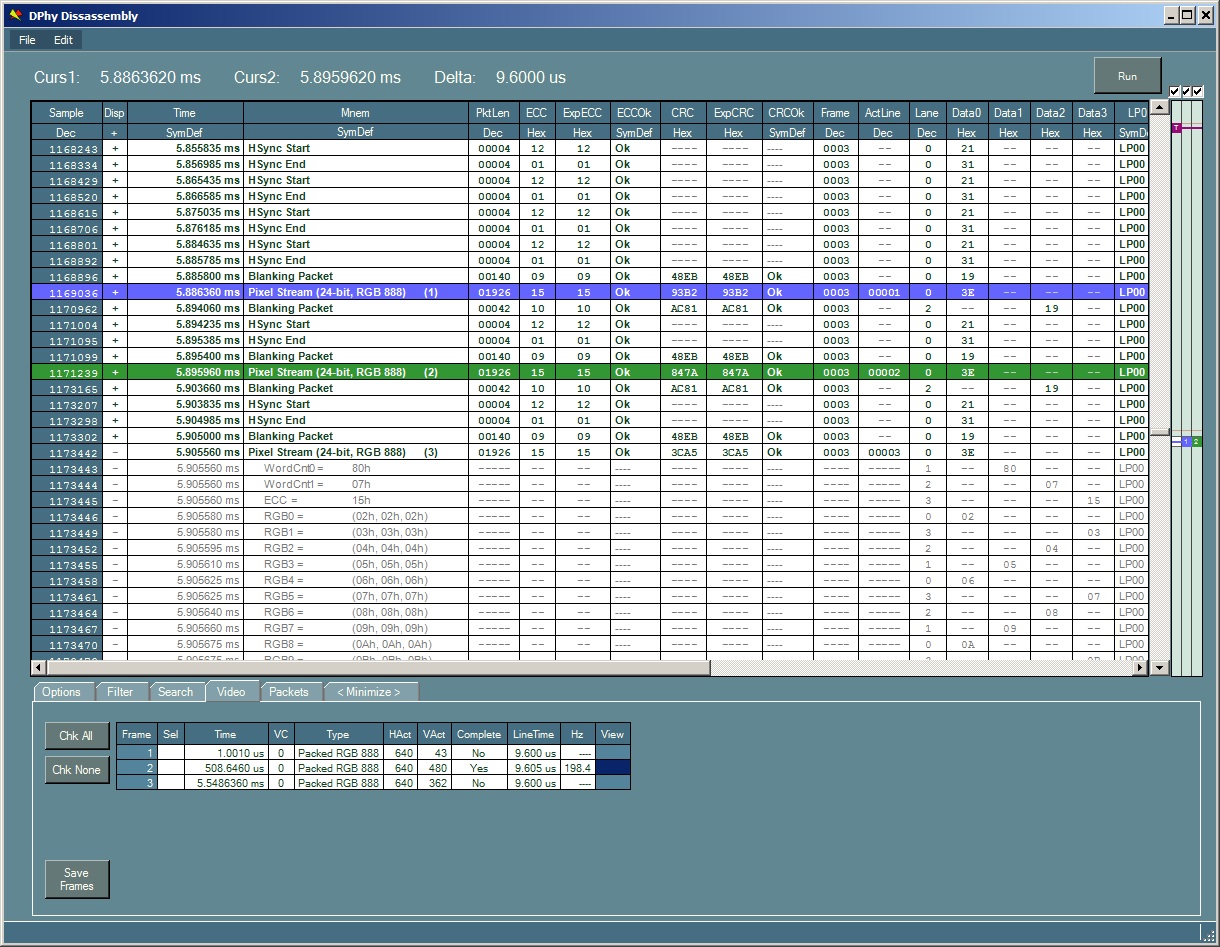

Screenshot(s)
