CPhy Scope Decoder

Description

• Decode of single MIPI CPhy lane up to 2.5 Gsps
• Uses either Tektronix or Agilent (Keysight) oscilloscope for acquisition
• Decodes and displays CSI2 1.3 and DSI2 1.0 protocol packets and CPhy 1.1 signaling states/symbols
• DSI support does not include DSC, LPDT, BTA, or peripheral command decoding

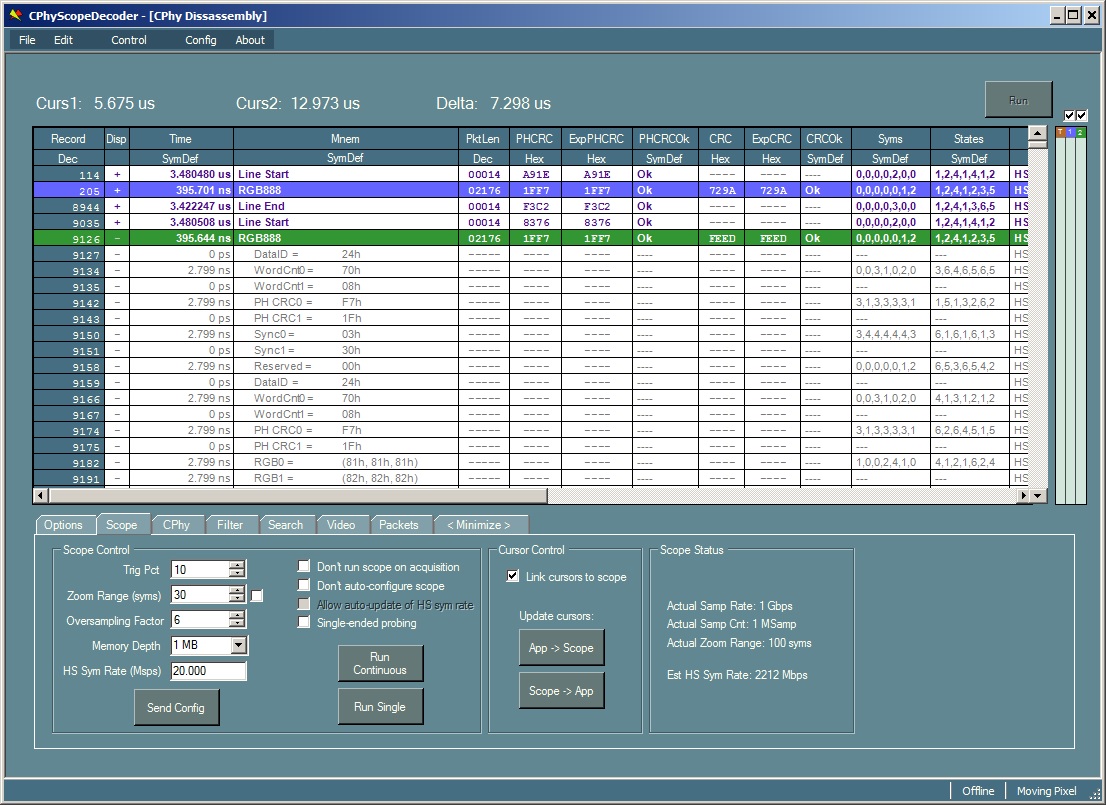

• Cursors on scope linked both directions to decode window
• Provides extensive search and display filtering capabilites
• Decodes, displays, and (under user control) exports captured video frames
• Provides RPC remote-control capability using a .NET DLL
• Familiar control software interface (similar to DPhyDecoderHSCtl software)

Requirements for operation

• CPhyScopeDecoder Software
• CPhyScopeDecoder license USB dongle
• Tektronix or Agilent (Keysight) oscilloscope
• Windows Host Computer (optional)

Software  (can run in demo mode without scope):

CPhyScopeDecoder Version Summary
CPhyScopeDecoder (version 3.3, Aug 2016)

Support Files

Example saved trace file.

Documents

CPhyScopeDecoder User's Manual (version 2.1, Nov 2015)

List Pricing

CPhyScopeDecoder Software for Tek scope $13,000
CPhyScopeDecoder Software for Keysight scope $15,000
